Aluminum Radiator 3 Row Core A628651

Fitment：

For Chevy Corvette 6.0L V8 GAS 2006-2007

For Chevy Corvette 6.2L V8 GAS 2008-2013

For Chevy Corvette 7.0L V8 GAS 2006-2013

For Chevy SSR 5.3L V8 GAS 2003-2004

For Chevy SSR 6.0L V8 GAS 2005-2006

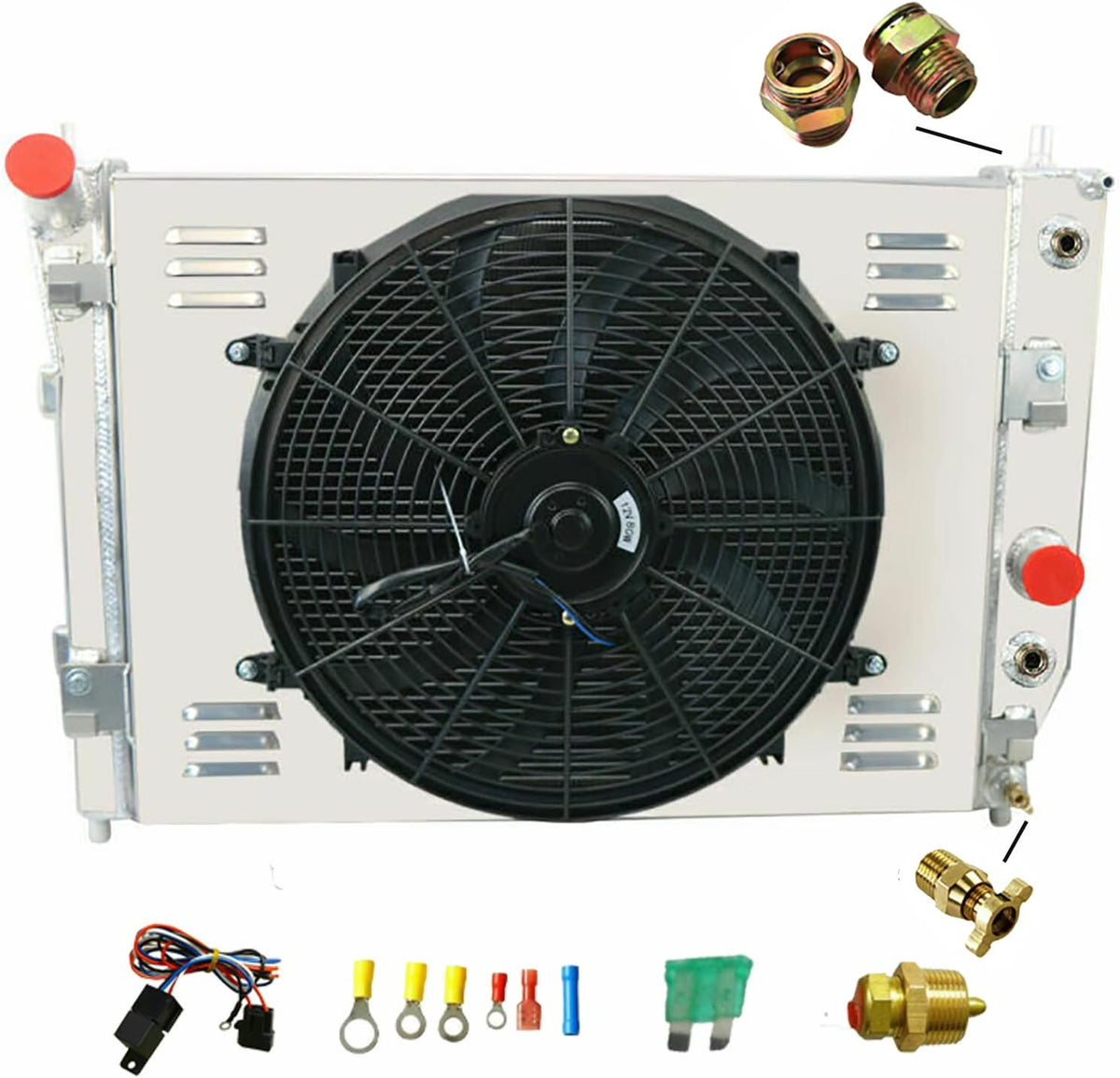

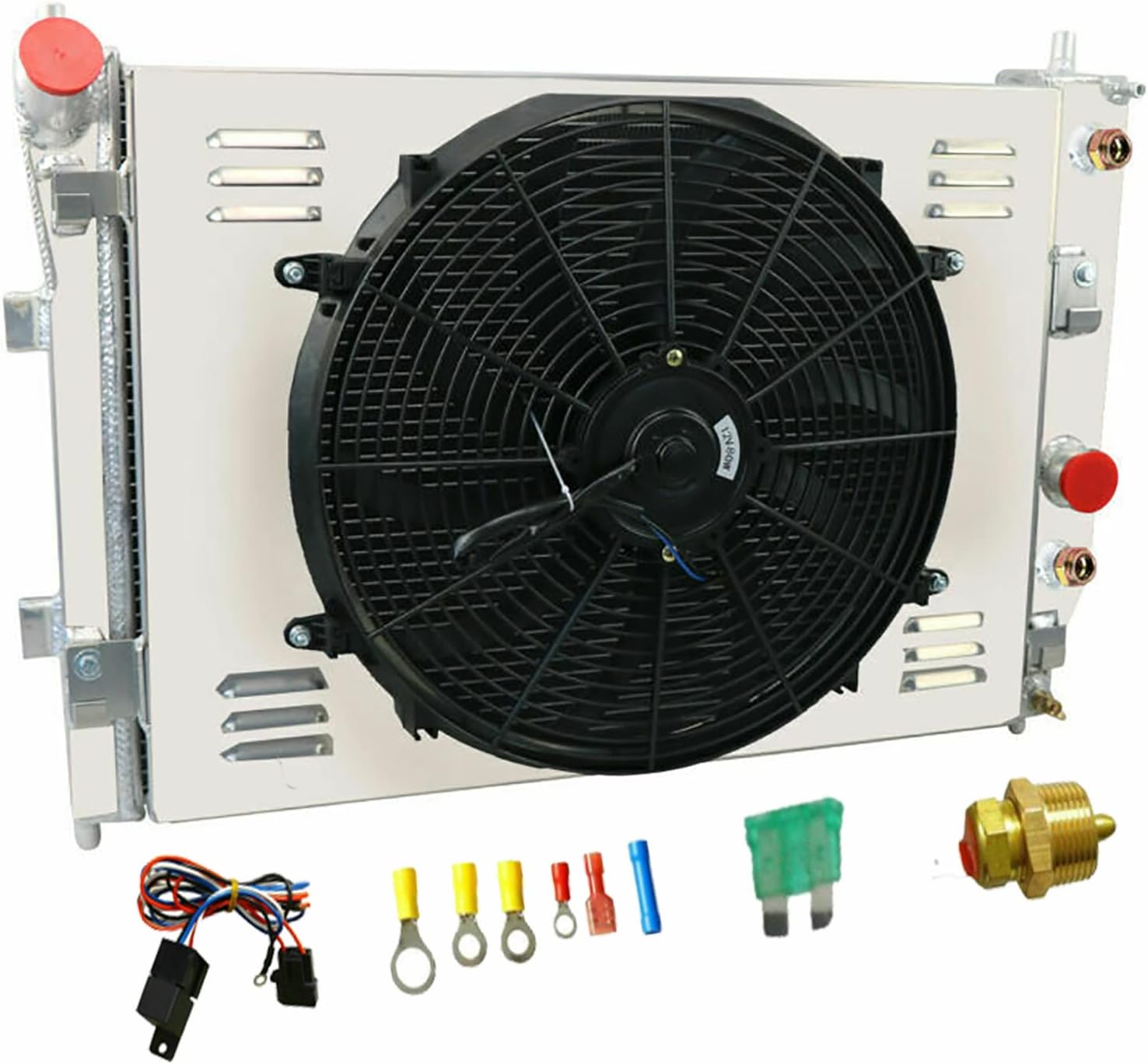

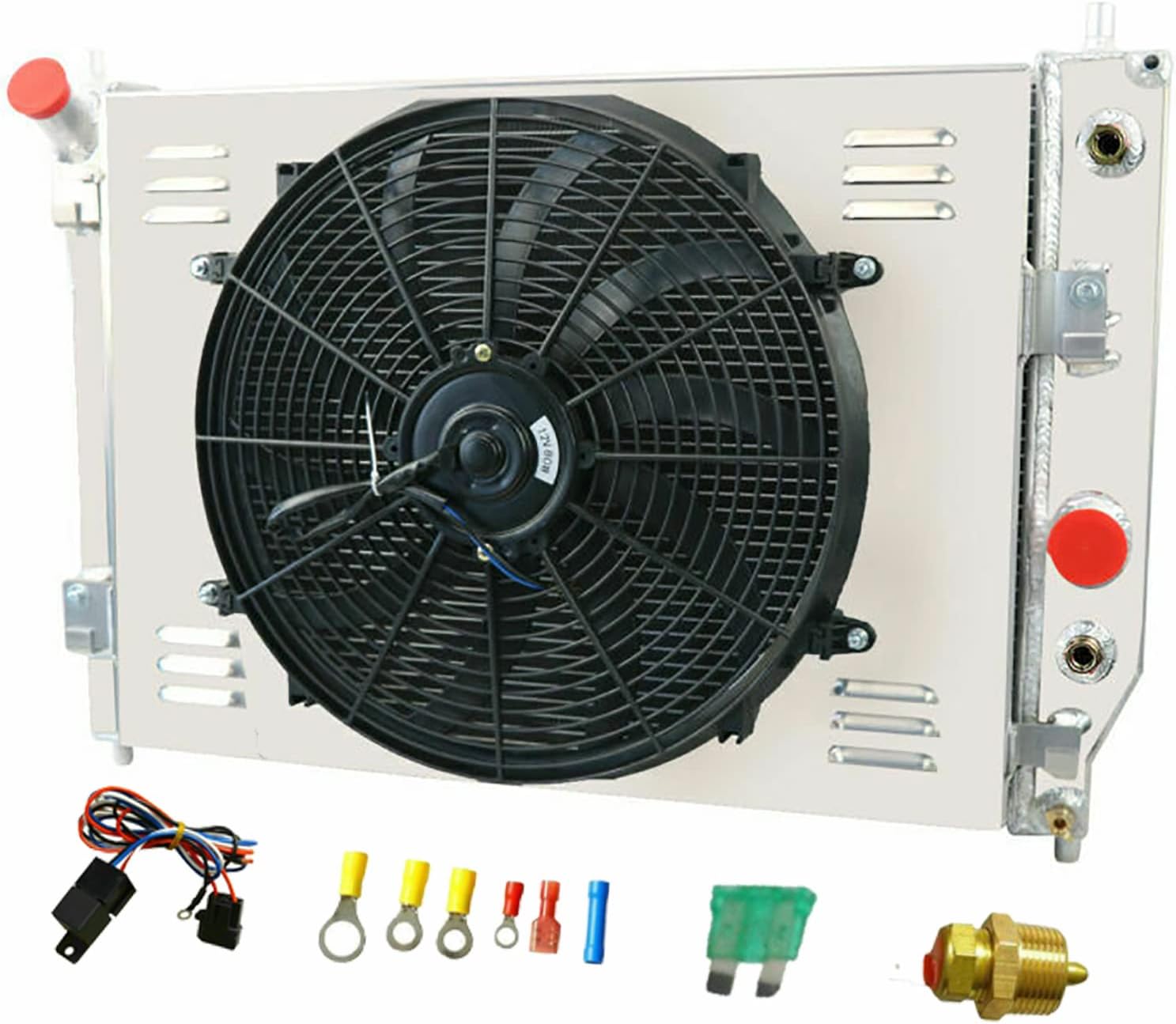

Package Include:

1 X 3-Row Aluminum Radiator

1 X Aluminum Shroud

1 X 14" Fan (Includes mounting kits)

1 X Thermostat Relay Kit

FAN DETAILS:

Maximum Fan CFM: 2200±200

FAN DIAMETER X HEIGHT X THICKNESS:14.05" X 14.05" X 2.5"

Number of Blades: 8 blades (Plastic)

Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps

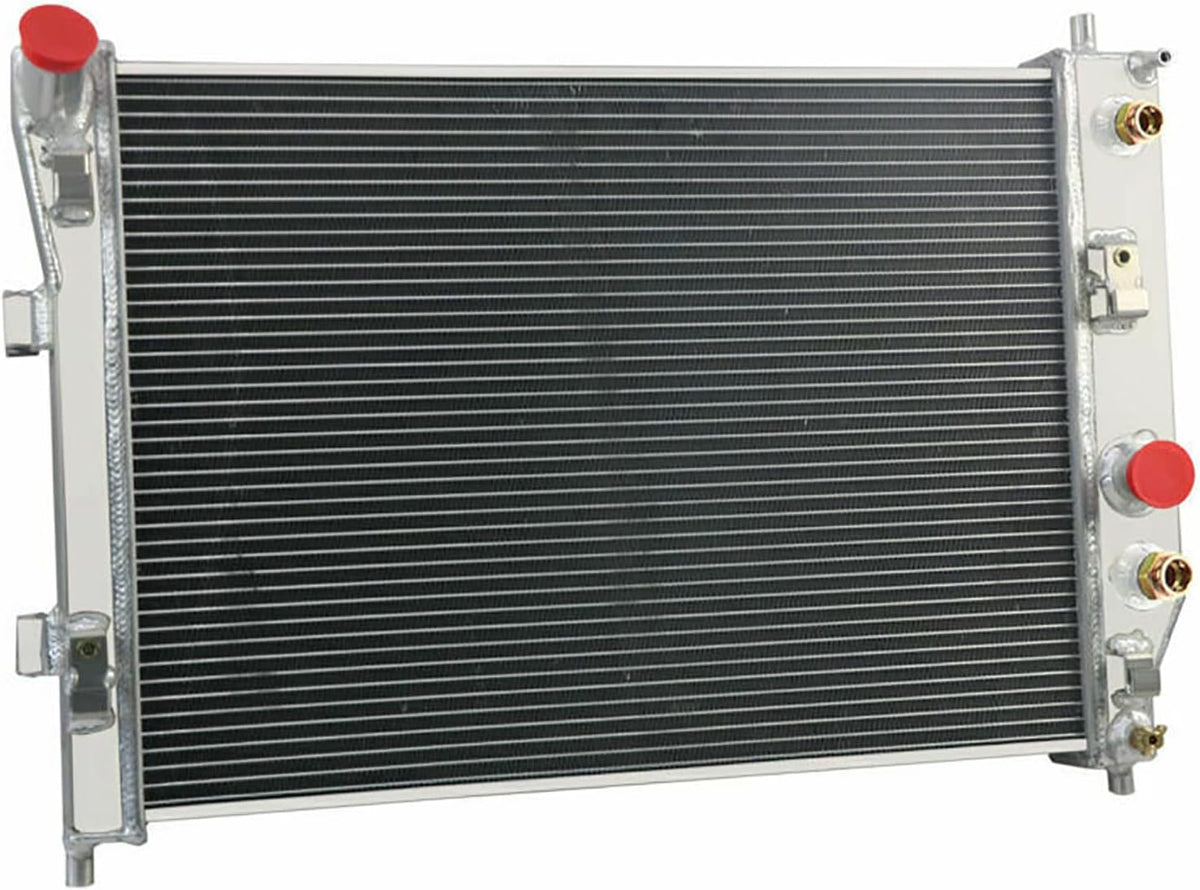

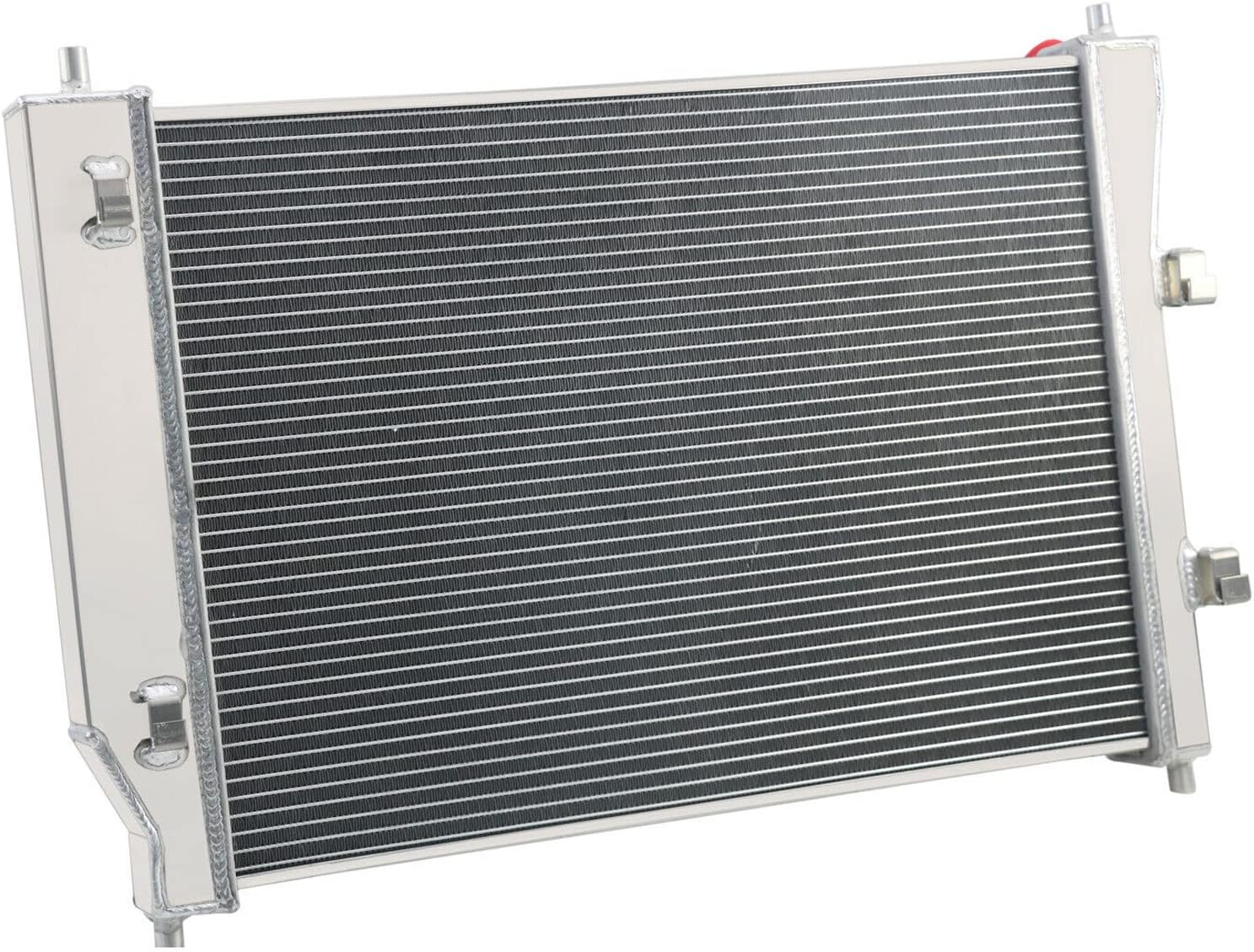

Radiator Details:

3 Row Core Radiators

Material: All Aluminum ; Aircraft 5057 grade aluminum

Fitment Type: Direct Replacement

Crafts: 100% Tig welded

Delivery: Local Delivery

Placement on Vehicle: Engine Compartment

Automatic Oil Cooler :YES On Passenger Side

Enginer Oil Cooler:NO

Features: 100% Leak Tested,Crossflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation

Mounting Style: Bolt-On

Transmission: Automatic and Manual.

OE/OEM Part Number:

2714,CU2714,RAD2714,DPI2714,21996495,21559,GM3010510,1886,CU2714,8163,RK1069

Relay Kit Instructions:

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

Thermostat Relay Kit:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

Probe typically threads into radiator, water outlet or manifold.
